3D Bouncing Balls gl programming

GL Programming is programming with use of opengl graphics library. OpenGL API contains several functions, which helps rendering 2d/3d image as graphics on computer. It is designed to streamline the process of rendering the different objects on computer screen. One of the best part that OpenGL has over DirectX is that, OpenGL is hardware/OS independent.

Computer Graphics in few decades have grown from 8 bit simple games to large scale scientific research. Now we see in every aspect of life including images, videos, games, application etc there is intense use of graphics. OpenGL and other various graphics API evolves and make our life easier.
In this post we are going to create a 3D bouncing ball program in opengl using C/C++. You can also get this free computer science projects with source code download.

The GL Programming

GLU OpenGL Utility Library and GLUT - The OpenGL Utility Toolkit, have so many features which helps in gl programming. They are standard part of OpenGL implementation, helps in writing programs.

gl programming opengl and glut overview


With gl programming we can do many things including drawing a simple triangle to a large scale complex graphics game. OpenGL considers points, lines, polygons, images, and bitmaps to be primitives or basic elements. With the combination of these elements many complex figures can be obtain.

There are various aspects of GL Programming -
  • Include necessary headers files
  • The functions, methods or commands of opengl starts with gl e.g - glBegin, glEnd etc.
  • In gl programming window management is done via main function which all other related functions.
  • OpenGL do rendering, pipe lining, pixel operation, rasterization, texturing, fragmentation, animation, interactive operations etc.
  • OpenGL operates in different modes or states.
  • OpenGL works on buffers (memories) to display the objects

3D Bouncing Balls

In this post we are going to create a opengl program that will show 3D bouncing balls. Now in detail we are going to tell you what are our objective or aim for coding this gl program.

What we are developing?

First the floor is drawn which is a checkerboard, most likely similar to our opengl chess board program. Then we will draw three balls, of different colors. These balls will bounce up and down on the floor. To make the program or interesting, the user interaction has been added to it. With the help of four navigation key, the floor as well as ball, the whole system can be zoom in/out and can also be move around - simply say moves the camera in different directions - swinging the camera around.
Basically, we are creating an application which shows the balls bouncing on a floor. The animation which make application more interesting, with arrow keys move the camera.

PROJECT MODULES

Apart from the basic modules of a gl programming i.e header files, main function this application has basically in 5 modules. We have defined global array for Colors to be used for balls and floor.
// Colors
GLfloat WHITE[] = {1, 1, 1};
GLfloat RED[] = {1, 0, 0};
GLfloat GREEN[] = {0, 1, 0};
GLfloat MAGENTA[] = {1, 0, 1}
1. CAMERA CLASS - This class will define the methods (functions) that are to be used for movement of camera. The camera moves horizontally in a circle centered at the origin of radius 10. It moves vertically straight up and down.
Here some use of trigonometry comes as we apply the formula with sine and cosine functions from opengl. The variables are defined which will store the position of the camera, it's x-y-z positions. The swing or motion of camera done via the angle, which determine x,z position. Angle will help movement of camera in and around. While the value of y coordinate helps in moving camera up and down.
The functions prototype here will get the information and determine the position of x, y, z coordinate of camera. Also prototype will define animation, movement in four direction - up, down, left and right.

2. BALL CLASS - All the variable and prototype function declared for the balls. A ball has a radius, a color, and bounces up and down between a maximum height and the xz plane. Therefore the x and z coordinates of the balls are fixed. It uses a lame bouncing algorithm, simply moving up or down by a mere 0.05 units at each frame.

The prototype of function that will draw the ball will have following parameters - radius, color, x, y, z. Here x-y-z are coordinate positions. The ball is given a good shape with call of glutSolidSphere .

3. CHECKERBOARD CLASS - We all know a checkerboard is one with alternate square of two different color. This class will define methods and variable for checkerboard. The number of squares in the checker board is set via constructor. Each of the square in checkerboard is 1 x 1 unit. The one of it's corner is (0, 0) and the board stretches out along positive x and positive z directions. It rests on the xz plane.

We have used the concept of Display list in this class to draw the checkerboard. Other like giving the checkerboard lighting, material, ambient opengl function has been called.

4. DISPLAY - Though display is necessary for every application in gl programming, we had called it a separate module. Like all other gl programs, here we define to draw the objects on the screen.

Here we draws one frame, first the checkerboard and then the balls, from the current camera position.

5. USER INTERACTION - Without user interaction the program look dull, hence we have added user interaction to this program with special function (just named so).

The table below will show keys used for user interaction and their uses.

KEY USES
up Move camera up/zoom in
down Move camera down/zoom out
left Move camera left
right Move camera right

Keys as said above will moves the camera according to the key pressed. The glutPostRedisplay(); then ask to refresh the display.

FINAL THOUGHTS

In this 3d bouncing ball gl programming, a timer is also there which requests to draw the next frame. Also the size of the ball and colors are hard-coded which can be change with global array. Similarly size and color of checkerboard is hard-code which also can be changed via program.  We have used navigation key for user interaction, you may like to code any key as per your choice.

The following video will show demo or output of this gl programming. We also states some of the modification you can make in the program.

Download the source code from Google Drive.

Sunday, January 15, 2017

OpenGL Moving Bézier curves Program in C/C++

In our many tutorial, we have explained about how to create various objects, diagrams, things in OpenGL.  In our earlier tutorial we have explained about how to draw Bézier curves in opengl C/C++ with source code. In this post we will use the same source code and bring motion to our Bézier curves. You will see OpenGL Moving Bézier curves Program in C/C++ explained in this post.

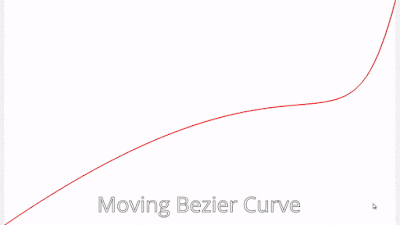

Before going to the tutorial we are going to see the output of our program. Below gif will demo the out put and show Moving Bézier curve.



A curve is collection of set of points which are not in a straight line. They exist in 2d as well as 3d space. Bézier curves are parametric curves which can be generate with some set of points called as control points. Bézier curves are of different degree - linear curves, quadratic curve, cubic curve and high order curve. Following image will show the mathematical representation of Bézier curves -



In our example we will use simple Bézier curves, and give motion to them using two control points.

First we define the global variables which we can use in more than one set of function or methods. We have four set of control points, one each at end of curve and two in the middle. Using the middle control points we will give the curve a movement to change their position in 2d plane.
int bzco[4][2]={{0,0},{99,201},{204,49},{320,300}},c[4],n=3;
You can experiments with the bzco and choose the specific points for motion.

Next is to draw bezier curve, for which we need to define the curve center points. Firs of all we will define a function that will compute the points of the curve. This functions is very important for drawing bezier curves in opengl.

void bezierCoefficients(int n,int *c)
{
	int k,i;
	for(k=0;k<=n;k++)
	{
		c[k]=1;
		for(i=n;i>=k+1;i--)
		c[k]*=i;
		for(i=n-k;i>=2;i--)
			c[k]/=i;

	}
}
In display function we will call the above function and use the GL_LINE_STRIP in loop to develop the curve. The array of x, y coefficients will help in containing value for control and end points. Size of points is also defined using the glPointSize and gluOrtho2D to certain x, y values which define the curve path. You can see code in source code download below.

We have finished drawing Bézier curve but this post is about Moving Bézier curves Program. Hence we need to define a function called motion(), which will give movement to the curve. Simple logic we use to determine the extent of movement is the x, y coefficient point of 2d plane. We will set the value to which curve can move and then came down from there. For this we will use the array which we have declared as global variable.
void motion(void)
{
	bzco[1][0]+=s1x;
	bzco[1][1]+=s1y;
	bzco[2][0]+=s2x;
	bzco[2][1]+=s2y;
if(bzco[1][0]<0 bzco="">320)
{
	s1x=-s1x;
}
if(bzco[1][1]<0 bzco="">300)
{
	s1y=-s1y;
}
if(bzco[2][0]<0 bzco="">320)
{
	s2x=-s2x;
}
if(bzco[2][1]<0 bzco="">300)
{
	s2y=-s2y;
}
glutPostRedisplay();
}
In the above code you can see that first we add the number(distance) to the array and then negate it. So, logic is to first add the value to coefficient to go up and bring them down. You can see we have chosen 300, 320 two different control points. You all can experiment with these points as well and see the the magic yourselves. The glutPostRedisplay(); repeat drawing of objects on screen with call back to main function, hence will repeat the same.

Download the source code of this program from the link given below.
