OpenGL Tutorial 2D Moving Car

In this post we are going to learn opengl tutorial on 2D Moving Car. This is very simple tutorial on opengl, which will teach how to make use of simple polygon functions. You can see the final output of below.

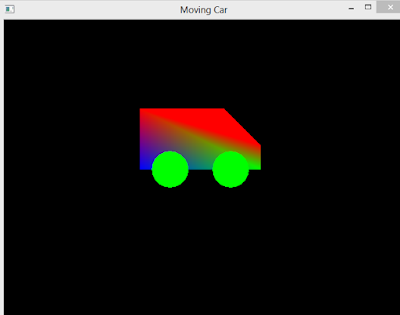

OpenGL Tutorial 2D Moving Car


We are going to make the 2D Car with simple polygon - triangle, quadrilateral and circle. In this opengl tutorial we are going to use these three simple polygon to create the car. Since we are going to make moving Car, hence first going to define the angle of movement.

/* rotation angle for the triangle. */
float rtri = 0.0f;

/* rotation angle for the quadrilateral. */
float rquad = 0.0f;

Next step is to create a function that will generate the wheel of car.

void drawBall(void) {
        glColor3f(0.0, 1.0, 0.0); //set ball colour
        glTranslatef(ballX,ballY,ballZ); //moving it toward the screen a bit on creation
        //glRotatef(ballX,ballX,ballY,ballZ);
        glutSolidSphere (0.3, 20, 20); //create ball.
        glTranslatef(ballX+1.5,ballY,ballZ); //moving it toward the screen a bit on creation
        glutSolidSphere (0.3, 20, 20); //
        }

Draw Rest part of Car

We are going to draw the rest of the car with the display functions in our opengl tutorial.
/* The main drawing function. */
void DrawGLScene()
{
  glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);        // Clear The Screen And The Depth Buffer
  glLoadIdentity();                // Reset The View

  glTranslatef(rtri,0.0f,-6.0f);        // Move Left 1.5 Units And Into The Screen 6.0

  //glRotatef(rtri,1.0f,0.0f,0.0f);        // Rotate The Triangle On The Y axis
  // draw a triangle (in smooth coloring mode)
  glBegin(GL_POLYGON);                // start drawing a polygon
  glColor3f(1.0f,0.0f,0.0f);            // Set The Color To Red
  glVertex3f(-1.0f, 1.0f, 0.0f);        // Top left
  glVertex3f(0.4f, 1.0f, 0.0f);

  glVertex3f(1.0f, 0.4f, 0.0f);

  glColor3f(0.0f,1.0f,0.0f);            // Set The Color To Green
  glVertex3f( 1.0f,0.0f, 0.0f);        // Bottom Right
  glColor3f(0.0f,0.0f,1.0f);            // Set The Color To Blue
  glVertex3f(-1.0f,0.0f, 0.0f);// Bottom Left

  //glVertex3f();
  glEnd();                    // we're done with the polygon (smooth color interpolation)
  drawBall();

  rtri+=0.005f;                    // Increase The Rotation Variable For The Triangle
  if(rtri>2)
      rtri=-2.0f;
  rquad-=15.0f;                    // Decrease The Rotation Variable For The Quad

  // swap the buffers to display, since double buffering is used.
  glutSwapBuffers();
}


Now you need to have the init functions, window resize function, simple keyboard and main functions. We have included all the function and create the program for this opengl tutorial.  See the full source code for the program given below.


#include     // Header File For The GLUT Library
#include     // Header File For The OpenGL32 Library
#include     // Header File For The GLu32 Library
//#include      // Header File For sleeping.

/* ASCII code for the escape key. */
#define ESCAPE 27

/* The number of our GLUT window */
int window;

/* rotation angle for the triangle. */
float rtri = 0.0f;

/* rotation angle for the quadrilateral. */
float rquad = 0.0f;

/* A general OpenGL initialization function.  Sets all of the initial parameters. */
// We call this right after our OpenGL window is created.
void InitGL(int Width, int Height)
{
  // This Will Clear The Background Color To Black
  glClearColor(0.0f, 0.0f, 0.0f, 0.0f);
  glClearDepth(1.0);                // Enables Clearing Of The Depth Buffer
  glDepthFunc(GL_LESS);                // The Type Of Depth Test To Do
  glEnable(GL_DEPTH_TEST);            // Enables Depth Testing
  glShadeModel(GL_SMOOTH);            // Enables Smooth Color Shading

  glMatrixMode(GL_PROJECTION);
  glLoadIdentity();                // Reset The Projection Matrix

  gluPerspective(45.0f,(GLfloat)Width/(GLfloat)Height,0.1f,100.0f);

  glMatrixMode(GL_MODELVIEW);
}

/* The function called when our window is resized (which shouldn't happen, because we're fullscreen) */
void ReSizeGLScene(int Width, int Height)
{
  if (Height==0)                // Prevent A Divide By Zero If The Window Is Too Small
    Height=1;

  glViewport(0, 0, Width, Height);        // Reset The Current Viewport And Perspective Transformation

  glMatrixMode(GL_PROJECTION);
  glLoadIdentity();

  gluPerspective(45.0f,(GLfloat)Width/(GLfloat)Height,0.1f,100.0f);
  glMatrixMode(GL_MODELVIEW);
}

float ballX = -0.5f;
float ballY = 0.0f;
float ballZ = 0.0f;

void drawBall(void) {
        glColor3f(0.0, 1.0, 0.0); //set ball colour
        glTranslatef(ballX,ballY,ballZ); //moving it toward the screen a bit on creation
        //glRotatef(ballX,ballX,ballY,ballZ);
        glutSolidSphere (0.3, 20, 20); //create ball.
        glTranslatef(ballX+1.5,ballY,ballZ); //moving it toward the screen a bit on creation
        glutSolidSphere (0.3, 20, 20); //
        }


/* The main drawing function. */
void DrawGLScene()
{
  glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);        // Clear The Screen And The Depth Buffer
  glLoadIdentity();                // Reset The View

  glTranslatef(rtri,0.0f,-6.0f);        // Move Left 1.5 Units And Into The Screen 6.0

  //glRotatef(rtri,1.0f,0.0f,0.0f);        // Rotate The Triangle On The Y axis
  // draw a triangle (in smooth coloring mode)
  glBegin(GL_POLYGON);                // start drawing a polygon
  glColor3f(1.0f,0.0f,0.0f);            // Set The Color To Red
  glVertex3f(-1.0f, 1.0f, 0.0f);        // Top left
  glVertex3f(0.4f, 1.0f, 0.0f);

  glVertex3f(1.0f, 0.4f, 0.0f);

  glColor3f(0.0f,1.0f,0.0f);            // Set The Color To Green
  glVertex3f( 1.0f,0.0f, 0.0f);        // Bottom Right
  glColor3f(0.0f,0.0f,1.0f);            // Set The Color To Blue
  glVertex3f(-1.0f,0.0f, 0.0f);// Bottom Left

  //glVertex3f();
  glEnd();                    // we're done with the polygon (smooth color interpolation)
  drawBall();

  rtri+=0.005f;                    // Increase The Rotation Variable For The Triangle
  if(rtri>2)
      rtri=-2.0f;
  rquad-=15.0f;                    // Decrease The Rotation Variable For The Quad

  // swap the buffers to display, since double buffering is used.
  glutSwapBuffers();
}

/* The function called whenever a key is pressed. */
void keyPressed(unsigned char key, int x, int y)
{
    /* sleep to avoid thrashing this procedure */
   // usleep(100);

    /* If escape is pressed, kill everything. */
    if (key == ESCAPE)
    {
    /* shut down our window */
    glutDestroyWindow(window);

    /* exit the program...normal termination. */
    exit(0);
    }
}

int main(int argc, char **argv)
{
  glutInit(&argc, argv);

  glutInitDisplayMode(GLUT_RGBA | GLUT_DOUBLE | GLUT_ALPHA | GLUT_DEPTH);

  /* get a 640 x 480 window */
  glutInitWindowSize(640, 480);

  /* the window starts at the upper left corner of the screen */
  glutInitWindowPosition(0, 0);

  /* Open a window */
  window = glutCreateWindow("Moving Car");

  /* Register the function to do all our OpenGL drawing. */
  glutDisplayFunc(&DrawGLScene);

  /* Go fullscreen.  This is as soon as possible. */
  //glutFullScreen();

  /* Even if there are no events, redraw our gl scene. */
  glutIdleFunc(&DrawGLScene);

  /* Register the function called when our window is resized. */
  glutReshapeFunc(&ReSizeGLScene);

  /* Register the function called when the keyboard is pressed. */
  glutKeyboardFunc(&keyPressed);

  /* Initialize our window. */
  InitGL(640, 480);

  /* Start Event Processing Engine */
  glutMainLoop();

  return 1;
}

Monday, March 14, 2016

GRAPHICAL IMPLEMENTATION OF ATLAS

1.1   About Computer Graphics
            The term computer graphics has been used in a broad sense to describe "almost everything on computers that is not text or sound". Typically, the term computer graphics refers to several different things:
  • the representation and manipulation of image data by a computer
  • the various technologies used to create and manipulate images
  • the sub-field of computer science which studies methods for digitally synthesizing and manipulating visual content, see study of computer graphics
Computer graphics are graphics created using computers and, more generally, the representation and manipulation of image developments in computer graphics have had a profound impact on many types of media and have revolutionized animation, movies and the video game industry.
1.2 IMAGE TYPES


2D computer graphics are the computer-based generation of digital images—mostly from two-dimensional models, such as 2D geometric models, text, and digital images, and by techniques specific to them Pixel art


Pixel art is a form of digital art, created through the use of raster graphics software, where images are edited on the pixel level. Graphics in most old (or relatively limited) computer and video games, graphing calculator games, and many mobile phone games are mostly pixel art.

Vector graphics formats are complementary to raster graphics. Raster graphics is the representation of images as an array of pixels and is typically used for the representation of photographic images.  Vector graphics consists in encoding information about shapes and colors that comprise the image, which can allow for 3D computer graphics in contrast to 2D computer graphics are graphics that use a three-dimensional representation of geometric data that is stored in the computer for the purposes of performing calculations and rendering 2D images. Such images may be for later display or for real-time viewing’s more flexibility in rendering.
1.3   Open GL
OpenGL is the premier environment for developing portable, interactive 2D and 3D graphics applications. Since its introduction in 1992, OpenGL has become the industry's most widely used and supported 2D and 3D graphics application programming interface (API), bringing thousands of applications to a wide variety of computer platforms. OpenGL fosters innovation and speeds application development by incorporating a broad set of rendering, texture mapping, special effects, and other powerful visualization functions. Developers can leverage the power of OpenGL across all popular desktop and workstation platforms, ensuring wide application deployment.
OpenGl runs on every major operating system including Mac OS, OS/2, UNIX, Win32/64, Linux, OPEN Step and BeOS as well as embedded real time Oss and game consoles. It is callable from Ada, C, C++, FORTRAN, and java and offers complete independence from network protocols and topologies.
1.4   About Project

            This mini project “ATLAS” provides us with the information   about countries, their capitals and flags.  It can be considered a subset of a real life atlas.  It is an interactive project, since it allows the user to pick the country of his/her choice and know all about it.  The user first of all arrives at a main screen after which he can select a continent of his/her choice. Further he will be led to a set of countries which are present in the selected continent. Amongst the set provided the user can select a country. The name, capital and flag of the country will be displayed on screen.. He/she can traverse through the countries and their flags with help of suitable menus provided.



   Design
            The complete overview of the project is shown in the block diagram; it shows how it will perform actions through out its execution.
The design depicted in the figure 3.1 specifies that initially the user is provided with a menu of continents. Amongst these the user selects one using the mouse interface. Further the Sub-menu of countries within the selected  continent is displayed. Amongst these the user again selects one country  using the mouse. Finally the flag of the county is displayed along with the county’s name and its capital.

3.2 Algorithm
Step 1: Start
Step 2:  Initialize and specify the size, position and creates the output window.
Step 3:Specify the view volume
Step 4: Create a menu for users
Step 5:Create an interaction for the user to select from the menu
Step 6:Create the respective flags.
Step 7: Stop



Sunday, March 13, 2016

Car Customization using opengl

Project Description



This project uses opengl standards along with C++ programming Language for Implementation. OpenGL is a graphics software system which has become a widely accepted standard for developing graphics application. OpenGL is a device independent graphics library that allows the programmer to use a common set of functions with an application. It provides the actual drawing tools through a collection of functions that are called within an application.

            This Application provides an interface for the user to design a car according to his custom needs. The user is provided with various options for modifying a car such as changing the colour, changing mirrors, removing them, etc. The user is provided an option to view the car in 3600by the click of the left mouse button.

            This application makes use of keyboard functions, mouse functions (for modification), and idle function (for rotation of car around 3600).


Note: since, the application has not been developed yet, we still don’t know about the various opengl functions used in this program.

This Abstract is written by - By Mohammed Abdul Aleem (4mh11cs046) and Manjunath N (4Mh11cs042).

Saturday, March 12, 2016

3D Jungle Viewer OpenGL Source Code and Report


Wonder what you can see in the image above. It is a Jungle isn't it? Looking Great?

We have seen so many 3D Projects in OpenGL, of which this project is wonderful and look more a professional, didn't let it feel that the project is developed by some students. The Project is developed by  UTBM students:  Thibaut Despoulain, Lauranne Didierjean, Baptiste Aubry and Adrien Mauranyapin. They Took more than 3 Months to develop is wonderful OpenGL Project.

The Project is nice work of pipelining in opengl, shaders, textures, framebuffers, composers, scene graph parsing in Opengl. They used many math library to accomplish the task along with the 3D modelling and texturing object appear in the 3D Jungle Viewer.

Download OpenGL Projects Source Code

You Can download this wonderful opengl project source code from GitHub .The complete source code, licensed under the MIT license, so you must obey the what licen says. You are free to distribute in any conditions, till you have the copyright information included.

OpenGL Project Report

The Project report is available free of code but is in French language. So If you need Translated Report  in english, do contact us to openglprojects@gmail.com.


We give no warranty for Source code as well report, we are no way associated to them. We are not answers to your action. Please do read the Licence before using Code or report.

Watch Video Demo

Thursday, March 10, 2016

Dual Rotating Triangle

In VTU 6th Sem Syllabus COMPUTER GRAPHICS AND VISUALIZATION Lab, Student have to do a project using the OpenGL and C++. Many of the student have made a great mark by submitting some good projects like 3D Animated Robot. Many of student want to have simple program, hence today we have came with very simple program for you.

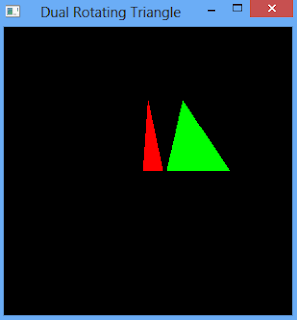

Dual Rotating Triangle

As you may understand with the name of project, there is two triangle and they are rotating. We have used the simple code for developing this project. Let start doing it. First we have defined a global variable for angle.
int GAngle=0;


The whole program is divided into three parts - Display, Timer and Main. We will code each of them one by one. First We will define the Display Function, where we are going to use simple primitive opengl function for drawing triangle GL_TRIANGLE. We use the global GAngle variable to rotate the drawn triangle. You can experiment with the angle and try how it turn out to be. You can also experiments with the vertices coordinate which draw triangles.


void Display(void)
{
glClear(GL_COLOR_BUFFER_BIT);

glLoadIdentity();
glRotated(GAngle,0,1,0);

// Anti-Clockwise Winding
glBegin(GL_TRIANGLES);
glColor3f(1,0,0);
glVertex3f(-1,0,0);
glVertex3f(1,0,0);
glVertex3f(0,1,0);

glColor3f(0,1,0);
glVertex3f(-1,0,0.5);
glVertex3f(1,0,0.5);
glVertex3f(0,1,0.5);

glEnd();

GAngle = GAngle + 4;

glFlush();

glutSwapBuffers();
}


Now We add the Timer Function to let the Triangle turn on that time. Code is given below-


void Timer(int extra)
{
glutPostRedisplay();
glutTimerFunc(30,Timer,0);
}
Add main function and execute the program to get the output below.
int main(void)
{
// Init to double buffering

glutInitDisplayMode(GLUT_DOUBLE|GLUT_RGB);
glutCreateWindow("Dual Rotating Triangle");
glutDisplayFunc(Display);
glutTimerFunc(0,Timer,0);
glMatrixMode(GL_PROJECTION);
glLoadIdentity();
glFrustum(-1,1,-1,1,1,3);
glTranslated(0,0,-2);
glMatrixMode(GL_MODELVIEW);
glutMainLoop();
return 0;
}


Below is Full Source code for this Project, Just Copy Paste and run it. Before that there are few points for future enchantments -
  • Add Keyboard/Mouse Interaction to start and stop rotation of Triangles.
  • Use Keyboard/Mouse Interaction to Change the Color of the Triangles.


#include <stdio.h>

#include "glut.h"
int GAngle=0;
void Display(void)
{
glClear(GL_COLOR_BUFFER_BIT);
glLoadIdentity();
glRotated(GAngle,0,1,0);

// Anti-Clockwise Winding

glBegin(GL_TRIANGLES);
glColor3f(1,0,0);
glVertex3f(-1,0,0);
glVertex3f(1,0,0);
glVertex3f(0,1,0);
glColor3f(0,1,0);
glVertex3f(-1,0,0.5);
glVertex3f(1,0,0.5);
glVertex3f(0,1,0.5);
glEnd();

GAngle = GAngle + 4;

glFlush();

glutSwapBuffers();

}

void Timer(int extra)
{
glutPostRedisplay();
glutTimerFunc(30,Timer,0);
}

int main(void)
{
// Init to double buffering

glutInitDisplayMode(GLUT_DOUBLE|GLUT_RGB);
glutCreateWindow("Dual Rotating Triangle");
glutDisplayFunc(Display);
glutTimerFunc(0,Timer,0);
glMatrixMode(GL_PROJECTION);
glLoadIdentity();
glFrustum(-1,1,-1,1,1,3);
glTranslated(0,0,-2);
glMatrixMode(GL_MODELVIEW);
glutMainLoop();
return 0;
}
